Bioprocess development must be done with the end in mind

The most expensive mistake in biopharmaceutical development is treating upstream, downstream, formulation, and DNA design as four separate workstreams that get stitched together at the end. It is how many organisations structure their CMC teams, how most graduate programs teach the subject, and it is wrong. The cost surfaces as low yields, missed timelines, late reformulations, comparability breaks at scale-up, and clarification or polishing steps bolted on after the fact. It almost always surfaces in someone else's quarter, which is exactly why the incentive to prevent it is so weak.

The scientists who avoid these failures are not smarter than everyone else. They reason about the problem in a different order. They hold the entire constraint chain in their heads from the first day, working backwards from the finished product to the gene, and they refuse to lock any single decision until they know what it forecloses for its neighbours.

This article makes that mental model explicit and puts the mechanism, the numbers, and the decision logic behind each link. To keep the trickle-down concrete rather than abstract, we follow one molecule the whole way down the chain, from its amino acid sequence to the vial a patient injects.

The molecule we will follow

A 175-residue, ~18.8 kDa non-glycosylated cytokine, a granulocyte colony-stimulating factor (G-CSF) analog. The sequence carries five cysteines: two structural disulfide bonds plus one unpaired, surface-accessible thiol. It has an N-terminal methionine, a single N-G (Asn-Gly) motif in a solvent-exposed loop, no N-X-S/T glycosylation sequons, and a computed pI near 5.9. Target product profile (the QTPP): a high-concentration liquid for subcutaneous self-injection by autoinjector, stored at 2–8 °C, with a 24-month shelf life. Hold those facts in mind. Every one of them constrains a decision several steps away, and we will watch each constraint propagate.

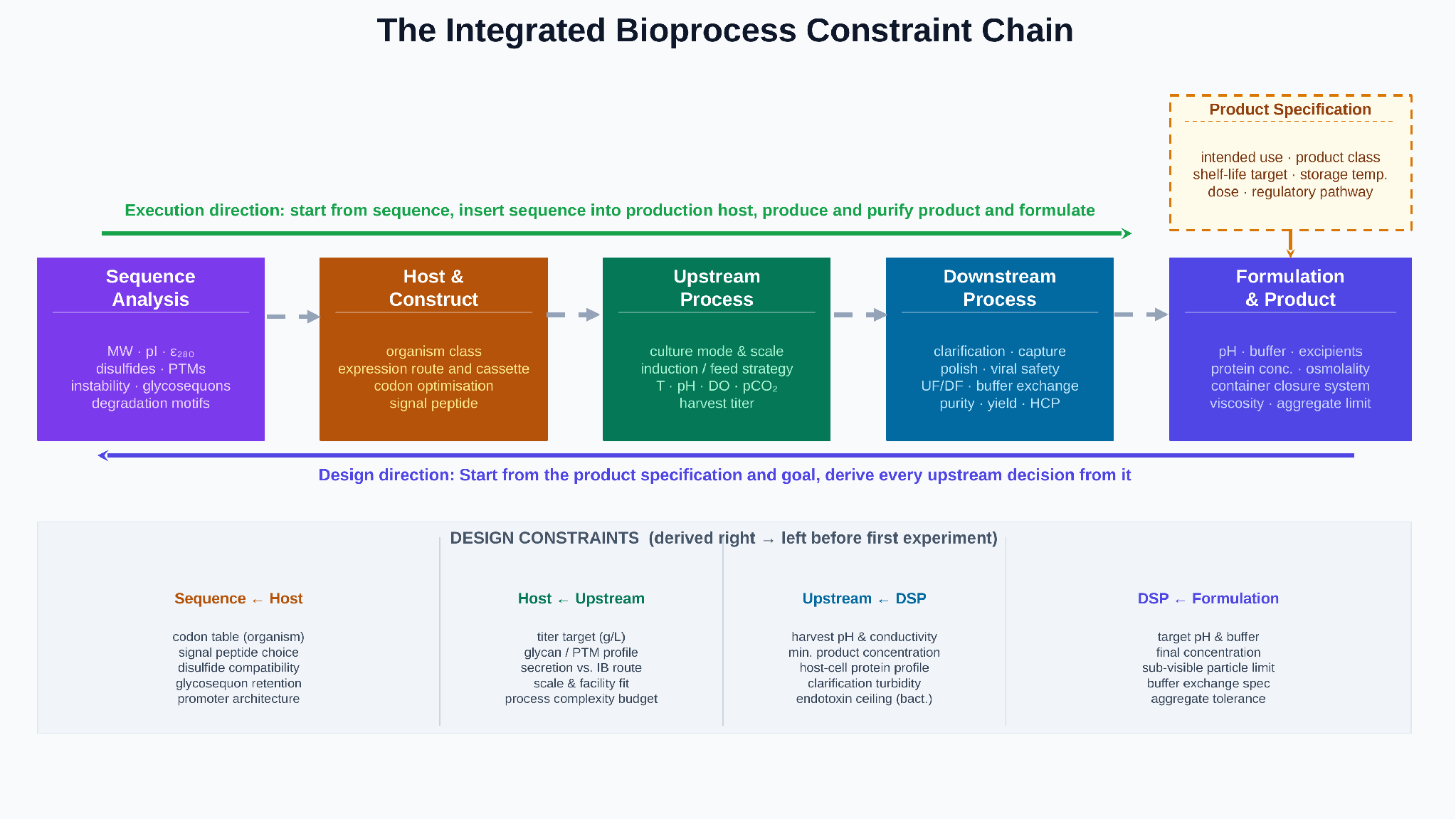

The constraint chain

A process is best understood not as a pipeline but as a search through a design space whose dimensions are pinned at the two ends and squeezed everywhere in between. At one end sits the molecule. Its physicochemical properties (mass, charge, hydrophobicity, disulfide topology, post-translational requirements, and chemical liabilities) are fixed by the amino acid sequence and cannot be optimised away. At the other end sits the Quality Target Product Profile: intended use, dose, concentration, route of administration, container closure, storage condition, shelf life, and regulatory pathway. Both ends are effectively non-negotiable.

Everything between them, the host, the expression route, the fermentation strategy, the purification train, and the formulation, is the negotiable middle. Each choice in that middle removes degrees of freedom from its neighbours. The protein's isoelectric point constrains the formulation pH window. The formulation pH constrains the final polishing buffer. The polishing buffer constrains the capture and harvest specification. The harvest specification constrains the bioreactor and the host. The constraints chain together, and they propagate in both directions.

The asymmetry of those constraints is the whole game. The constraints imposed from the product end are hard: a parenteral pH window is bounded by tolerability and by what a regulator will accept; an aggregation limit is bounded by immunogenicity risk. The constraints from the molecule end are equally hard: you cannot wish away a free cysteine or invent a glycan the host cannot make. The softest, most optimisable variables (titer, feed profile, resin chemistry) sit in the middle. Rational design therefore anchors on the two hard ends first and lets the soft middle absorb the strain. Designing from the middle outward, maximising titer first and discovering the formulation window later, is precisely what manufactures the predictable failures described throughout this article.

In Quality-by-Design language this is not exotic. The molecule's liabilities and the QTPP together define the Critical Quality Attributes (CQAs). Each process step exposes Critical Process Parameters (CPPs). Integrated development is simply the discipline of mapping every CPP to the CQA it controls before locking it. The constraint chain is the qualitative backbone of that map, the thing you can sketch on a whiteboard on day one before any Design of Experiments (DoE) has been designed.

Most development failures occur when a team builds its module without knowing the constraints imposed by the adjacent modules. The upstream team optimises titer without knowing the capture step's loading window, then hands across a harvest that the capture resin binds poorly. The formulation team locks a pH before the protein's pI has been confirmed experimentally, then watches accelerated stability fail by aggregation. The downstream team selects a polishing resin without knowing the product's charge-variant or glycan profile, then cannot resolve the very species the regulator will ask about. These are not accidents. They are the predictable consequence of working in the wrong direction.

Designing when the QTPP is only roughly known

The constraint chain assumes a fixed product end, and for a biosimilar or a well-trodden modality that assumption holds. For a novel molecule early in development it usually does not. The dose, the final concentration, the route, sometimes even single versus multi-dose are still being decided by clinical data that does not exist yet. Working backwards from a target that is itself moving looks impossible. It is not, provided you stop treating the QTPP as a point and start treating it as a bounded envelope, and provided you separate the decisions the molecule fixes from the decisions the QTPP fixes.

The first move is to lean harder on the end that is already fixed. The sequence does not move with the QTPP. Disulfide topology, pI, hydrophobicity, the liability motifs, and the free-thiol parity are invariant, so every decision they drive is safe to lock now regardless of where the product profile lands: the expression route, the redox and chelation strategy, the capture mode, and the direction (though not the exact setpoint) of the formulation pH. In an uncertain program these molecule-driven decisions carry more of the design load, not less, because they are the only part of the chain that does not wobble.

For the decisions the QTPP does drive, replace the point target with a box. Instead of "pH 6.0, 50 mg/mL, IV," carry "pH 5.0 to 7.0, 50 to 200 mg/mL, IV or SC," and ask which choices stay feasible across the whole box. Most do, and those you can defer cheaply. The few that do not are where the discipline lives: design preemptively for the most demanding corner of the envelope rather than re-engineering when the QTPP firms. If subcutaneous at high concentration is plausible, choose a host and purification train that can reach the required purity and a formulation platform that can reach high concentration, even if the molecule might end up a dilute IV. Designing for the demanding corner is far cheaper than discovering you cannot reach it after the cell line is locked.

Not all QTPP uncertainty is equal. Rank the open questions by how expensive the decision they swing is to reverse. Host and cell line are the most expensive to change, so if a clinical or biological question (does effector function matter, is it IV or SC) swings the host, resolving that one question early carries the highest information value in the whole program. Cheap, late-binding decisions (final fill concentration, surfactant level, container) can wait for the profile to sharpen. This is ordinary real-options logic applied to CMC: close the expensive options on the best evidence available, and keep the cheap ones open.

Fill the remaining unknowns with platform priors rather than guesses. For most modalities there is a default presentation the field already knows how to make, and starting from it gives the rough QTPP a concrete provisional value you deviate from only where the molecule demands. Then let the commitment track the clinical phase: lock the invariant, molecule-driven decisions for the Tox and Phase 1 process, keep the contingent ones on the platform default, revisit them formally at each phase as dose and route firm, and plan the comparability bridge for the changes you already know are coming. Phase-appropriate development (ICH Q8(R2)) is not a relaxation of the constraint chain; it is the constraint chain run with the uncertainty made explicit.

Table 6 sorts the major decisions by which end drives them, which is the practical answer to a target profile that is only roughly known.

Table 6. Running the constraint chain under an uncertain QTPP. Molecule-driven decisions are invariant and can be locked immediately; QTPP-driven decisions are contingent and should be defaulted to a platform, deferred where cheap, or designed to the demanding corner where not.

Following our molecule · under an uncertain QTPP

Suppose the only firm facts were "subcutaneous, self-administered, refrigerated," with dose and concentration still open. Most of our chain would still be locked: the E. coli inclusion-body host, the refold and redox strategy, the chelator, the CEX capture, and the acidic direction of the formulation are all molecule-driven and invariant across the plausible dose and concentration range. What stays open is narrow: the exact concentration and whether the device is a prefilled syringe or an autoinjector (defer both), and single versus multi-dose, which is the one branch that would add a preservative and is therefore worth resolving early, because a preservative can destabilise the protein. The uncertain QTPP changes how much we commit, not the backbone of the design.

Step 1: What the sequence tells you before any experiment

An amino acid sequence is not just a blueprint for a folded protein. It is a prediction engine. Before a single clone is picked, a single litre fermented, or a single column packed, the sequence already fixes a set of parameters that constrain every later decision. Table 1 lists the most load-bearing ones: how each is calculated, where it lands downstream, and what it says for the molecule we are following. The instability index, discussed in its own right below, is a ninth such parameter.

Table 1. Sequence-derived parameters: how each is computed, where it lands in the process, and its value for the worked-example molecule. Every entry is available before any experimental work.

The instability index, read correctly

The instability index is one of the most useful sequence metrics and one of the most misused. Guruprasad et al. (1990) built it from the observation that certain dipeptides occur far more often in unstable proteins than in stable ones, assigning each of the 400 dipeptides a weight (the dipeptide instability weight value, DIWV) and summing them along the sequence. An index II above 40 flags a protein as likely unstable; most IgG therapeutics score in the 30 to 38 range.

The critical caveat, almost always omitted: the index was trained on in vivo (intracellular) protein half-life, not on thermal melting temperature and not on colloidal aggregation in a vial. It is therefore a proxy for cellular degradation propensity that the field has borrowed, by analogy, as a generic instability flag. Treating it as a quantitative shelf-life or aggregation score is a category error. Its real value is directional: a high index II tells you to look closer, and the dipeptide breakdown tells you where to look, because the flagged motifs have defined chemistry.

Those mechanisms are specific and actionable. An N-G (Asn-Gly) motif on a flexible, surface-exposed loop is the classic deamidation hot spot: the asparagine side chain cyclises with the following backbone nitrogen to a succinimide, which hydrolyses to a mix of iso-aspartate and aspartate, and the rate climbs with pH above roughly 6 and with conformational flexibility. A D-P (Asp-Pro) bond is acid-labile and hydrolyses below pH 5. A solvent-exposed methionine oxidises to the sulfoxide under metal-catalysed or peroxide-driven conditions. Each motif maps to a process constraint: the N-G motif argues for a slightly acidic formulation and against high-pH hold steps; the D-P bond sets a floor on how low any process step may take the pH; the exposed methionine argues for an antioxidant and a chelator and against leaving the product in oxidising buffers.

The modern complement to index II is a spatial aggregation map. Predictors such as TANGO and AGGRESCAN, and structure-based spatial aggregation propensity when a model is available, identify the specific stretches that drive self-association. The index II says "this molecule carries risk"; the aggregation propensity risk map says "here are the three patches that will nucleate aggregation," which is the information a formulator can actually design against.

Two further sequence facts deserve the same skepticism. The pI from Henderson-Hasselbalch is a net-charge estimate that ignores how the folded structure shifts individual pKa values and, more importantly, ignores surface charge anisotropy. A protein with a neutral net charge can still carry a strongly positive and a strongly negative face, and those charge patches govern both its colloidal behaviour and its chromatographic binding far more than the net number does. Treat the sequence pI as a hypothesis to be confirmed by cIEF, not as a value to lock a formulation against. And the disulfide inventory should be read for parity: an odd cysteine count means an unpaired, reactive thiol, which is a specific liability (thiol-disulfide exchange, intermolecular scrambling, and covalent dimerisation) that constrains the redox environment of every step from refolding through formulation.

Following our molecule · Step 1

The sequence alone has already written several constraints. The unpaired cysteine flags covalent-aggregation risk and demands a controlled redox environment downstream. The single N-G motif and the exposed methionine define two chemical liabilities that both point toward a mildly acidic, low-oxidation formulation. The D-P logic does not apply here, but the deamidation and oxidation motifs together already bias the eventual pH window low. The pI near 5.9 sits uncomfortably close to a typical subcutaneous pH (5.5 to 7.0), which is an early warning we will have to resolve in formulation and in the choice of capture chemistry. None of this required an experiment.

Step 2: Host selection is a biology decision, not a lab tradition

Host selection is the most consequential single decision in the chain and the one most often made on the basis of which fermenters and protocols a lab already owns. That is understandable and it is the wrong basis. It is also one of the most common sources of expensive mid-development pivots, because a host fixes the post-translational repertoire that no downstream step can repair.

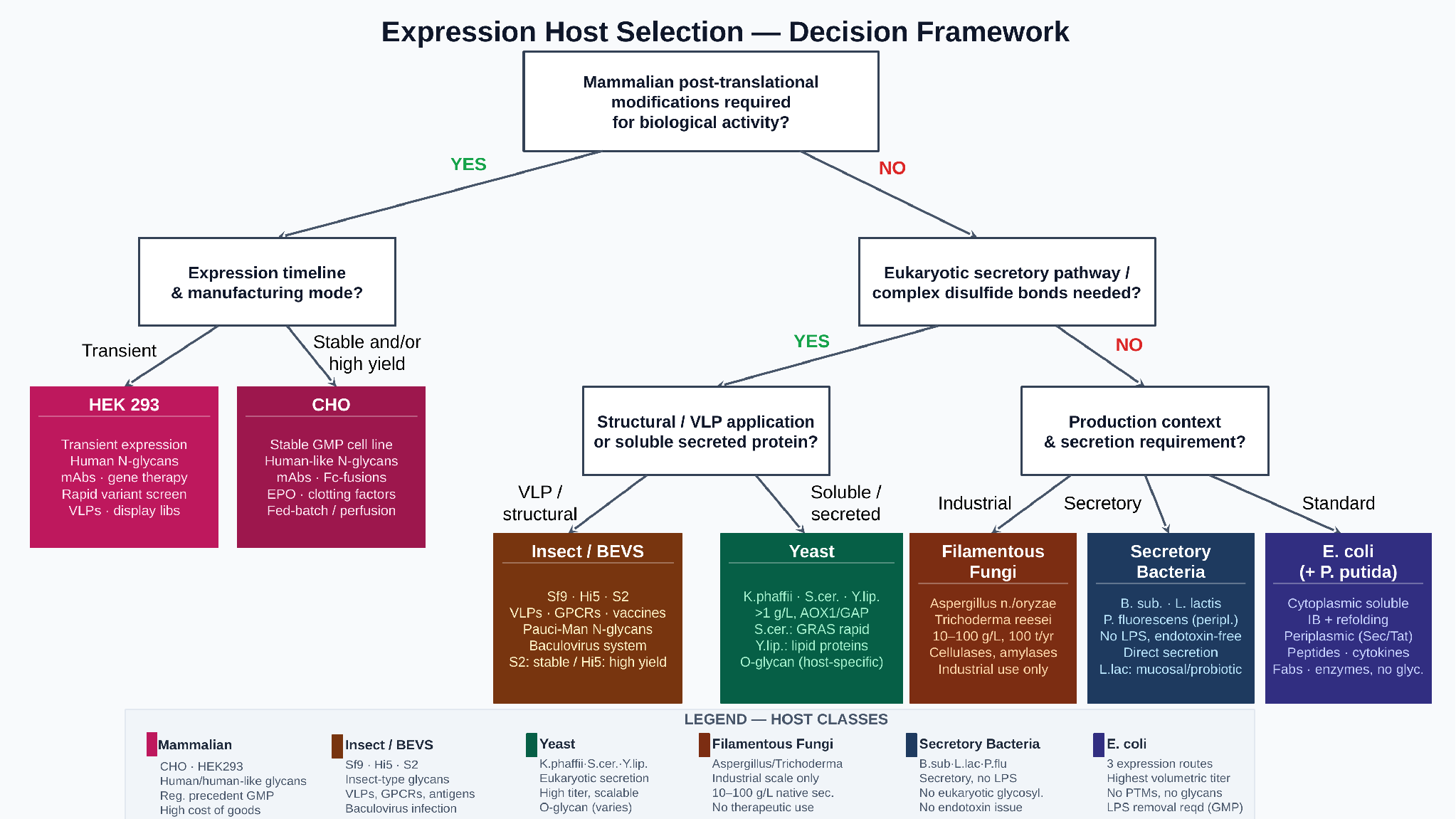

The decision tree in Figure 2 organises the landscape, six organism classes and seventeen hosts, by the biology of the protein and the context of the product rather than by lab convenience.

Table 2. Expression host classes compared on the axes that actually drive selection: glycosylation and its immunogenic caveats, folding and secretion environment, endotoxin status, typical titer, and primary applications. Two points worth noting: human-like glycosylation is never identical to human, and it is the folding column, not titer, that a disulfide-bearing protein like our example reacts to first.

Navigating the decision

The top question, does the protein require mammalian-type glycosylation for function, half-life, or effector activity, is usually answerable from the literature, but it is not as binary as it looks. Some proteins need any glycosylation for solubility or serum half-life without needing human glycans; some need a specifically afucosylated glycan for ADCC; some tolerate the high-mannose glycans yeast adds natively. Glycoengineered K. phaffii (humanised glycosylation strains) has widened this middle ground. If genuinely human-type N-glycans are required, the host is mammalian: CHO for stable GMP manufacturing, HEK293 for transient expression and viral-vector work (Dumont et al., 2016).

If mammalian glycosylation is not required, the next filter is structural complexity, specifically disulfide architecture and folding route. Proteins with several disulfide bonds, or that fold correctly only after secretion, belong in a host with an oxidising secretory pathway: insect cells via BEVS, or secretory yeast (K. phaffii for high titer, S. cerevisiae for speed and GRAS standing). The reductive cytoplasm of wild-type E. coli will not form disulfides correctly, which is why engineered oxidising-cytoplasm strains (SHuffle, Origami) and periplasmic export with DsbA/DsbC catalysis exist.

For proteins without a glycosylation requirement and without a punishing disulfide load, bacterial expression, primarily E. coli, delivers the fastest timelines, the lowest media cost, and the highest biomass. The route within E. coli (cytoplasmic soluble, cytoplasmic inclusion body with refolding, or periplasmic secretion) depends on size, disulfide count, and tolerance for refold optimisation (Rosano & Ceccarelli, 2014). The inclusion-body route deliberately accepts misfolded, aggregated product in exchange for very high expression and a built-in purification advantage (the IB is already enriched), then pays for it with a refold step whose yield must be designed, not assumed.

One distinction that receives too little attention early is the endotoxin burden of gram-negative processes. Lipopolysaccharide must be cleared below 0.1 EU/mL for intravenous parenterals, and LPS co-purifies stubbornly with many proteins because it associates with positively charged and hydrophobic surfaces. Gram-positive bacteria (B. subtilis, L. lactis), yeast, insect, and mammalian hosts are endotoxin-free. That is a real downstream cost difference, and it is routinely underweighted in the host conversation because it shows up as a DSP problem rather than a host problem.

It is worth stating the metric explicitly, because titer is the wrong one. The quantity that matters is purifiable, quality-correct product per unit cost and time: titer discounted by the fraction that is correctly folded, correctly processed, and recoverable. A host that doubles titer while adding a clipped variant, an immature glycan, or an endotoxin burden has not necessarily improved the process at all.

Cell-free and chemical synthesis: outside the host tree

Two options sit outside the living-host tree entirely, because they involve no production organism. They are the answer when the protein itself, not its biological role, is what makes a living host impractical.

Cell-free protein synthesis (CFPS) runs extracted transcription and translation machinery rather than a living cell. Eukaryotic lysates (wheat germ, rabbit reticulocyte) support more complex folding and limited post-translational modification when supplemented; prokaryotic systems (E. coli S30 extract, and the fully reconstituted PURE system) are simpler and cheaper, and their open reaction environment lets you tune the redox potential directly to drive disulfide formation. CFPS removes the host-toxicity constraint outright: proteins that would kill a host cell, membrane proteins, and constructs bearing non-natural amino acids via expanded genetic codes are all readily accessible. The reaction is set up and read out in hours, which makes CFPS a natural fit for rapid construct screening before committing to a living-host process. The trade-off is scale: yields sit in the µg to low-mg/mL range, so CFPS is a research and screening tool rather than a manufacturing route, though continuous-exchange and lysate-engineering advances keep pushing that boundary.

Solid-phase peptide synthesis (SPPS) bypasses biology altogether, building the chain residue by residue on a resin. It is the standard route for peptides under roughly 50 residues, especially when the sequence needs non-natural or D-amino acids, cyclisation, or site-specific chemical modification (PEGylation, lipidation) that biology cannot easily deliver. Above that length, per-coupling inefficiencies compound (a 99% coupling over 50 residues still loses about 40% of the chains), so SPPS stops being competitive with recombinant expression for full-length proteins.

Following our molecule · Step 2

No glycosylation sequons means no biological reason to pay for a mammalian or even a yeast host: the glycosylation branch is a clean No. Two structural disulfides plus an unpaired thiol push against naive cytoplasmic E. coli, but a non-glycosylated 18.8 kDa cytokine with a known refold is a textbook E. coli inclusion-body candidate, which is exactly how real G-CSF is made. We choose E. coli, IB route. That choice immediately writes the next several constraints: a refold step will dominate the early downstream process, the reductive expression environment makes the free thiol a refold-and-redox problem rather than an expression problem, and the gram-negative host puts LPS clearance squarely on the DSP critical-quality list.

Step 3: Upstream design, where the harvest specification comes first

Once the host is selected, the instinct is to optimise for titer. Titer is the wrong primary target. The upstream process does not exist to make cells or even to make protein in the abstract; it exists to deliver a harvest, in a defined state, that minimises the work the downstream process must do. The harvest specification (pH, conductivity, clarified product concentration, and the key impurity levels) should be written before upstream optimisation begins, and it should be derived from the capture step's loading requirements.

That derivation is concrete. A capture step has a dynamic binding capacity that depends on conductivity, residence time, and pH. For an ion-exchange capture, binding capacity falls as conductivity rises, so the harvest conductivity ceiling is set by the resin, not by what is convenient to feed. If the capture is Protein A or a mixed-mode resin, the relevant levers differ, but the logic is identical: the capture step defines the envelope, and the harvest has to land inside it. An upstream process tuned to maximum titer at a conductivity the capture resin cannot bind has optimised the wrong variable.

There is a quality coupling too, and it is the one most often missed. Specific productivity and growth rate trade against fidelity. Pushing biomass and rate can raise the rates of amino-acid misincorporation, truncation, incomplete disulfide formation, and immature glycosylation, so the fast process makes more protein and a higher fraction of the wrong protein. High cell density and the cell lysis that accompanies it also release host proteases that clip the product in the window between secretion and capture. The upstream variable that actually matters is therefore intact, correctly-processed product concentration at harvest, not total titer in the broth.

A worked promoter decision: AOX1 vs GAP in K. phaffii

To see how a single upstream choice radiates outward, take the promoter decision for a secreted protein in K. phaffii. It looks like an expression-level choice and is in fact a whole-process choice.

Table 3. AOX1 vs GAP in K. phaffii. AOX1 usually wins on titer and pays for it in upstream complexity; GAP trades titer for a simpler, isothermal, lower-risk process.

The general rule: AOX1 is preferred when titer is the binding constraint and the facility can handle methanol at scale; GAP is preferred when process simplicity, timeline, or manufacturing-risk reduction outweighs the titer advantage, and it is mandatory when the product is toxic to the host, because a constitutive promoter gives the cell no growth phase free of the burden. Newer methanol-free derepressed and engineered promoter systems are narrowing the gap, which is worth tracking.

The decision cannot be made in isolation from downstream, and this is the point of the example. A high-biomass AOX1 process needs more aggressive clarification than a lower-biomass GAP process, and the extra centrifugation or depth-filtration capacity belongs in the AOX1 process economics, not in a separate downstream budget that discovers it later. The promoter choice has set a clarification requirement two steps away.

Following our molecule · Step 3

Our molecule is an E. coli inclusion-body process, so the K. phaffii promoter decision is not ours, but the same discipline applies with different variables. The harvest here is not clarified broth; it is washed, solubilised, and refolded protein from inclusion bodies, and the refold defines the envelope the capture step must accept. The refold redox (a controlled cysteine/cystine or glutathione couple) is tuned to form the two native disulfides while keeping the free thiol from scrambling, and it is run at the lowest practical protein concentration to suppress aggregation. The output of that reasoning is a refold pool at a defined pH, conductivity, and redox state, which becomes the loading specification for capture. We have again let a downstream requirement, capture loading, dictate an upstream setpoint.

Step 4: Downstream design, minimum steps that still clear every attribute

The downstream process does not exist to purify a protein in the abstract. It exists to translate a biological product from the organism's idiom into the formulation's idiom, in the fewest steps, at a yield and cost that make the process manufacturable. Fewest steps is the part people get wrong in both directions, so it is worth being precise.

Why fewer steps matters, and what bounds it

Every chromatography step carries a yield cost, and those costs compound multiplicatively. Three steps at 85% each return 61% overall; four steps at the same recovery return 52%.

Table 4. Overall downstream yield as a function of step count and per-step recovery. At 1 g/L titer, the gap between a three-step and a four-step process at 85% recovery is 9 percentage points, which is 90 mg/L that never reaches the vial.

That math argues for fewer steps, but the floor is set by the impurities each step exists to clear: host-cell protein, host DNA, aggregate and fragment, charge variants, leached ligand, endotoxin, and (where relevant) adventitious virus. Minimum steps therefore means the minimum that still meets every clearance requirement with margin. The integration question is not how to remove steps in isolation; it is which impurities the upstream process can avoid generating in the first place, so that a step becomes droppable. A host with lower HCP, a promoter with less proteolysis, or a refold that produces fewer aggregates each buys a potential reduction in polishing burden. That is the constraint chain running upstream from a downstream goal.

Two further design rules carry most of the weight. First, orthogonality: consecutive steps should separate on different physicochemical bases (size, net and local charge, hydrophobicity, affinity), because two steps that separate on the same basis largely repeat each other's selectivity while each still charging its yield toll. Second, capture should be robust and high-capacity, while polishing should be selective; loading the most fragile separation first wastes its resolving power on bulk impurities.

Resin selection from protein properties, with the charge-patch caveat

The pI from Step 1 sets the gross ion-exchange logic: cation exchange (CEX) binds below the pI where the protein is net positive; anion exchange (AEX) binds above it. The familiar heuristic that binding within about 1.5 pH units of the pI is unreliable is a useful planning rule. It is also an oversimplification, and knowing why is what separates a planner from an empiricist.

Proteins routinely bind CEX above their pI, and AEX below it, because chromatographic binding is governed by the asymmetric distribution of surface charge local to the binding face, not by the net charge averaged over the whole molecule. A protein at its pI with a strong positive patch will still bind a cation exchanger through that patch. The net-charge rule predicts the starting condition; the real operating pH is found by pH-gradient or salt-gradient scouting, and the surprises in that scout are usually charge-patch effects.

Hydrophobic interaction chromatography (HIC) separates on surface hydrophobicity and binds in high salt, which couples it directly to the conductivity delivered by the preceding step: a HIC step inherits its load condition from whatever came before, another link in the chain. For the awkward case where the pI and the target formulation pH sit close together (say pI 6.5, formulation pH 6.0), neither CEX nor AEX gives a comfortable binding window, and the options are HIC, a flow-through polishing mode, or a mixed-mode resin that combines charge and hydrophobic selectivity to bind where a single-mode resin cannot.

Following our molecule · Step 4

The free thiol now drives the downstream design. Oxidising buffers and trace transition metals must be avoided across the train, because they catalyse thiol oxidation and disulfide scrambling into covalent dimers, so a chelator is carried and contact with stainless steel oxidative conditions is minimised. With pI near 5.9, capture by CEX at a pH safely below the pI binds the net-positive molecule and, conveniently, leaves it in a low-pH, low-conductivity pool that suits the eventual acidic formulation. Polishing then targets the species this molecule actually throws: a CEX or mixed-mode polish for charge variants and the covalent dimer, sized so the aggregate and the deamidated variant clear with margin. Endotoxin clearance, the cost of the gram-negative host chosen in Step 2, is designed in here, not discovered. Notice that the formulation pH we have not yet finalised is already shaping the capture pH.

Step 5: Formulation, derived from the sequence and the route, not from convention

Formulation is the product. It is the specification a regulator evaluates, the thing a patient receives, and the article every stability study must confirm. It is also where the sequence facts from Step 1 finally cash out, so it deserves more mechanism than the usual excipient checklist.

The first formulation constraint is the pI, but the reasoning needs a distinction that is routinely blurred: conformational stability and colloidal stability are different things and they often pull in opposite directions across pH. Conformational (thermodynamic) stability is how strongly the folded state is favoured over the unfolded one, measured as a melting temperature or an unfolding free energy. Colloidal stability is how strongly folded molecules resist sticking to each other, governed by interparticle forces and measured as a second virial coefficient (B22) or a diffusion interaction parameter (kD).

Near the pI, net charge is minimal, electrostatic repulsion between molecules collapses, and colloidal stability is at its worst, which is why aggregation propensity peaks there. Conformational stability, by contrast, is frequently highest near the pI. The formulation pH is the compromise that keeps the protein both folded and dispersed. "At least one pH unit from the pI" is the colloidal-stability heuristic, but the real target is found by measuring melting temperature (by DSF or nanoDSF) and B22 or kD (by static and dynamic light scattering) across a pH and excipient matrix. The sequence tells you where to start the matrix; it does not tell you where to land.

The route of administration sets the second constraint. Parenteral products must fall within pH 4.0 to 9.0, with a practical IV target of 5.0 to 7.5 and a subcutaneous target of 5.5 to 7.0 (Wang, 1999; Shire et al., 2004). The intersection of the colloidal window, the conformational window, and the route window defines the feasible formulation pH, and from that window the remaining decisions (buffer, concentration, container, surfactant) follow, each aimed at a measurable outcome: viscosity, aggregate fraction, osmolality, and long-term stability.

High concentration deserves its own note because the subcutaneous route forces it. As concentration rises, the same charge patches that drive colloidal instability drive reversible self-association, and that self-association shows up as viscosity and opalescence that can make a formulation unfillable or uninjectable (Shire et al., 2004; Yadav et al., 2010). Arginine, often paired with glutamate as the counterion, screens those interactions and is one of the few reliable viscosity reducers. The mechanism is electrostatic and hydrotropic, not osmotic, which is why it is reached for specifically at high concentration.

Excipient selection, by mechanism

Table 5. Formulation excipient classes, mechanism, and the choice for the worked-example molecule. Notice how the acidic pH forced upstream propagates here: it rules out sucrose and favours a non-reducing polyol.

Histidine is the default buffer for many parenteral biologics because it buffers well across 5.5 to 7.0, carries little toxicity up to 20 to 30 mM, and is compatible with common stability assays. The caveats are worth keeping: histidine itself is susceptible to metal-catalysed oxidation and is photosensitive, so a histidine formulation with an oxidation-prone protein usually wants a chelator and protection from light rather than histidine alone.

Following our molecule · Step 5

Here every earlier constraint converges. The pI near 5.9 sits inside the subcutaneous pH window, so net-charge repulsion at the conventional pH would be weak (poor colloidal stability), and the N-G deamidation and methionine oxidation liabilities both accelerate above pH 6. The resolution, which is exactly the one real G-CSF uses, is to formulate well below the pI at acidic pH near 4.0 in acetate, where net charge is high (strong colloidal repulsion), thiol reactivity and disulfide scrambling are suppressed, deamidation is slowed, and methionine oxidation is minimised. A polyol such as sorbitol provides tonicity and preferential-exclusion stabilisation, and polysorbate guards the interfaces during fill and autoinjector actuation. That single decision, pH 4.0, then propagates back up the chain: it is why the CEX capture in Step 4 was chosen to deliver a low-pH pool, and why no process step was allowed to drift toward neutral. The vial defined the column.

Step 6: Construct design, the last decision and the first synthesis

The gene is almost always synthesised early in real timelines, which creates a trap: it is tempting to design the construct before the process decisions above are made, or to design a single fixed construct without knowing which of those decisions might still move. The construct should be the last decision committed even though it is the first thing built, because it encodes choices that only the rest of the chain can specify.

The host fixes the codon table, and here the conventional advice is half right in a way worth correcting. E. coli and K. phaffii have substantially different codon usage, and a gene optimised for one will, in the worst case, carry rare-codon clusters that stall ribosomes in the other (Gustafsson et al., 2004). But naive codon optimisation that simply maximises the codon adaptation index can underperform, and the reason is instructive.

In a controlled library of 154 synonymous GFP variants, Kudla et al. (2009) found that codon bias did not correlate with expression at all; the stability of mRNA secondary structure near the ribosome binding site and start codon explained more than half the variation in protein level. The lesson is that codon design must do more than pick frequent codons: it must avoid strong 5′ mRNA structure around the start, keep GC content in a translatable band, and remove cryptic splice sites (in eukaryotic hosts), internal Shine-Dalgarno sequences, terminators, and repeats. For proteins where co-translational folding matters, codon harmonisation (matching the local translation-rate profile of the native gene rather than maximising speed everywhere) can preserve folding that pure optimisation disrupts.

Signal peptide choice is the other construct decision that the rest of the chain constrains. For secreted expression in K. phaffii, the native α-mating-factor prepro leader is the broad default, but shorter variants outperform the full prepro for specific protein classes (Rakestraw et al., 2009), and the prepro's processing is itself a product-quality issue: incomplete Kex2 and Ste13 cleavage of the Glu-Ala-Glu-Ala spacer leaves N-terminal extensions that show up downstream as charge and mass variants, which is a construct decision creating a DSP problem. For E. coli periplasmic export, the leader (OmpA, PelB, DsbA, TorT) affects both yield and the soluble-to-aggregated ratio in a protein-dependent way (Tegel et al., 2011).

Following our molecule · Step 6

Our E. coli inclusion-body route does not need a secretion leader, but it does need an N-terminal methionine strategy: cytoplasmic expression starts with formyl-Met, and whether the initiator methionine is removed by methionine aminopeptidase depends on the second residue, which is itself a sequence fact. If the mature protein should not carry an extra N-terminal methionine, the construct and the second-residue choice have to deliver that, because it becomes a mass and charge variant the DSP and the release assays will see. The codon design targets high IB expression while avoiding 5′ structure around the start, consistent with Kudla. Every one of these is a construct choice that only the host route, the DSP, and the release specification could have specified, which is why it comes last even though the DNA is ordered first.

The uncomfortable implication

If the integrated, backwards-from-the-product approach is demonstrably better, and the literature on late-stage development failures supports that it is, why is siloed development still the norm? The answer is structural, not intellectual. Functional teams have separate reporting lines, separate budgets, and separate optimisation metrics. The upstream team's KPI is titer. The formulation team's KPI is stability at stress conditions. None of these metrics rewards constraint-chain thinking; each rewards local optimisation, and the integration failures surface later, in someone else's timeline and someone else's budget.

What an individual scientist can do, regardless of the org chart, is to walk the chain before committing any single module. Before selecting the host, write down the formulation target and confirm the host is compatible with it. Before designing the upstream process, define the harvest specification in terms the downstream team can load. Before running the first stability study, confirm the formulation pH is at least one unit from the experimentally measured pI and consistent with the liability motifs in the sequence. This is not extra work. It is the same work, done in the order that prevents rework.

Our molecule shows the payoff in one line: an N-G motif and a methionine in the sequence, a free thiol, and a pI of 5.9 forced an acidic formulation; the acidic formulation set the capture pH; the capture pH and the free thiol set the redox and chelation strategy of the whole train; the inclusion-body host put endotoxin and refold on the critical list; and the construct was designed last to serve all of it. Read forward, that is an execution sequence. Read backward, it is a design. The skill is holding both readings at once.
